Algorithms

1. Tabular Q-Learning

1.1 Overview

Q-learning is a model-free, off-policy reinforcement learning algorithm that learns an action-value function \(Q(s, a)\) mapping state-action pairs to expected cumulative reward. It is "tabular" because \(Q\) is stored as a lookup table (implemented as a defaultdict) rather than approximated by a neural network.

Tabular Q-learning is a natural first baseline for this problem because the discretized state and action spaces are small enough to enumerate, updates are simple and stable, and there are no neural-network hyperparameters to tune.

1.2 State Discretization

The continuous observation vector \(\mathbf{s} \in [0, 1]^{2N}\) must be converted to a discrete key for table lookup. The StateDiscretizer partitions each dimension into \(B\) bins using edge arrays and maps each continuous value to a bin index via np.digitize. The result is an integer tuple of length \(2N\):

\[ \mathbf{s}_{\text{disc}} = \bigl(b_0,\; b_1,\; \dots,\; b_{2N-1}\bigr), \quad b_i \in \{0, \dots, B-1\} \]

Two binning modes are available:

Mode	Dimensions	Spacing	Use case
Uniform (default)	All	Equal-width bins across \([0, 1]\)	General purpose
Position heavy-tail	Position dims only	Quadratic spacing (\(u^2\)) concentrating bins near 0	Higher resolution at small headways

In the default training configuration, \(B = 20\) bins per dimension are used for both velocity and position dimensions.

1.3 Update Rule

After each transition \((s, a, r, s')\), the Q-value is updated using the standard off-policy TD(0) rule:

\[ Q(s, a) \leftarrow (1 - \alpha)\,Q(s, a) + \alpha\,\bigl[r + \gamma \max_{a'} Q(s', a')\bigr] \]

where:

• \(\alpha\) is the learning rate controlling how much new information overrides the old estimate.
• \(\gamma\) is the discount factor weighting future rewards.
• \(\max_{a'} Q(s', a')\) is the best estimated value from the next state (set to 0 at terminal states).

This is equivalent to the more commonly written form:

\[ Q(s, a) \leftarrow Q(s, a) + \alpha\,\bigl[r + \gamma \max_{a'} Q(s', a') - Q(s, a)\bigr] \]

1.4 Exploration Strategy

The agent uses an \(\varepsilon\)-greedy policy with linear decay:

\[ \varepsilon(t) = \varepsilon_{\text{start}} + \frac{t}{T_{\text{decay}}} \cdot (\varepsilon_{\text{end}} - \varepsilon_{\text{start}}) \]

where \(t\) is the current step count and \(T_{\text{decay}}\) is the total decay horizon. At each step:

• With probability \(\varepsilon\), the agent selects a random action (exploration).
• With probability \(1 - \varepsilon\), the agent selects \(\arg\max_a Q(s, a)\) (exploitation), breaking ties randomly.

Epsilon starts at 1.0 (fully random) and decays linearly to 0.05 over the full training run, encouraging broad exploration early and convergence to the learned policy later.

1.5 Hyperparameters

Parameter	Symbol	Default
Learning rate	\(\alpha\)	0.2
Discount factor	\(\gamma\)	0.98
Initial epsilon	\(\varepsilon_{\text{start}}\)	1.0
Final epsilon	\(\varepsilon_{\text{end}}\)	0.05
Epsilon decay steps	\(T_{\text{decay}}\)	num_episodes * max_steps
Action bins	\(n\)	20
State bins per dim	\(B\)	20
Episodes	—	250

1.6 Problems and Limitations

For this specific problem of controlling CAV, tabular Q-learning algorithm has several limitations:

1. Scalability: The state-action space grows exponentially with the number of vehicles and discretization bins, leading to a large Q-table that may not fit in memory or converge within a reasonable time.

2. Generalization: The agent cannot generalize to unseen states or actions, which may occur frequently in a continuous environment.

3. Loss of precision from discretization: The discretization process may lose important information about the state, especially if the bins are too coarse. This can lead to suboptimal policies.

Therefore, we concluded to use a Deep Q-Network (DQN) that can handle continuous state spaces and generalize better, while still being sample efficient and stable for training.

---

2. Deep Q-Network (DQN)

2.1 Overview

Deep Q-Networks (DQN) replace the Q-table with a neural network \(Q_\theta(s, a)\) that maps continuous state vectors directly to action values. This addresses the key limitations of tabular Q-learning identified above: the network generalizes across similar states without requiring explicit discretization, and its parameter count is fixed regardless of the state space size.

The implementation uses Double DQN [1] with a separate target network and experience replay buffer for stable training.

2.2 Network Architecture

The Q-network is a two-layer MLP that maps the observation vector to Q-values for each discrete action:

\[ \mathbf{s} \in \mathbb{R}^{2N} \xrightarrow{\text{Linear}(2N, 128)} \xrightarrow{\text{ReLU}} \xrightarrow{\text{Linear}(128, |\mathcal{A}|)} \mathbf{q} \in \mathbb{R}^{|\mathcal{A}|} \]

Layer	Input dim	Output dim	Activation
fc1	\(2N\)	128	ReLU
out	128	\(\lvert\mathcal{A}\rvert\)	None (linear)

For the default 4-vehicle, 21-action configuration: input dim = 8, output dim = 21, total parameters \(\approx\) 3,900.

2.3 Double DQN

Standard DQN uses the same network to both select and evaluate the next-state action, which leads to systematic overestimation of Q-values. Double DQN decouples these two steps:

1. The online network \(Q_\theta\) selects the best next action:

\[ a^* = \arg\max_{a'} Q_\theta(s', a') \]

1. The target network \(Q_{\theta^-}\) evaluates that action:

\[ y = r + \gamma\,(1 - d)\,Q_{\theta^-}(s', a^*) \]

where \(d = 1\) if the episode terminated, \(d = 0\) otherwise. This reduces overestimation bias by preventing the same network from both proposing and scoring the greedy action.

2.4 Experience Replay

Transitions \((s, a, r, s', d)\) are stored in a fixed-capacity replay buffer implemented as a deque with maximum size 200,000. When the buffer is full, the oldest transitions are discarded.

During each learning step, a uniform random batch of 128 transitions is sampled. This breaks temporal correlations between consecutive samples and allows each transition to be reused across multiple updates, improving sample efficiency.

Learning begins only after the buffer accumulates at least 10,000 transitions (start_learning_after), ensuring the initial batches are sufficiently diverse.

2.5 Target Network

A separate target network \(Q_{\theta^-}\) provides stable regression targets during training. It is updated every 3,000 steps using soft updates (Polyak averaging):

\[ \theta^- \leftarrow (1 - \tau)\,\theta^- + \tau\,\theta \]

with \(\tau = 0.01\) by default. This gradually blends the online network's weights into the target, providing a smoother learning signal than periodic hard copies (\(\tau = 1.0\)).

When \(\tau = 1.0\), the update becomes a hard copy of the online network weights.

2.6 Training Details

Loss function: Smooth L1 (Huber) loss between predicted and target Q-values:

\[ \mathcal{L} = \text{SmoothL1}\bigl(Q_\theta(s, a),\; y\bigr) \]

Huber loss behaves as MSE for small errors and as MAE for large errors, making it more robust to outlier transitions than pure MSE.

Optimizer: Adam with learning rate \(5 \times 10^{-4}\).

Gradient clipping: Gradients are clipped by global norm to 10.0 via clip_grad_norm_ to prevent destabilizing parameter updates.

Training loop: The agent operates in a step-based loop (not episode-based). At each of the 350,000 total steps:

1. Select action via \(\varepsilon\)-greedy (same linear decay as Q-learning).
2. Execute action in SUMO, observe \((r, s', d)\).
3. Store the transition in the replay buffer.
4. If buffer size \(\geq\) 10,000 and steps % train_freq == 0: sample a batch and perform one gradient step.
5. If steps % target_update_freq == 0: update the target network.
6. On episode termination, reset the environment and log the return.

2.7 Hyperparameters

Parameter	Symbol	Default
Learning rate	\(\eta\)	\(5 \times 10^{-4}\)
Discount factor	\(\gamma\)	0.99
Batch size	—	128
Buffer size	—	200,000
Start learning after	—	10,000 steps
Train frequency	—	Every 1 step
Target update freq	—	Every 3,000 steps
Soft update factor	\(\tau\)	0.01
Initial epsilon	\(\varepsilon_{\text{start}}\)	1.0
Final epsilon	\(\varepsilon_{\text{end}}\)	0.10
Epsilon decay steps	\(T_{\text{decay}}\)	500,000
Max gradient norm	—	10.0
Action bins	\(\lvert\mathcal{A}\rvert\)	21
Total training steps	—	350,000

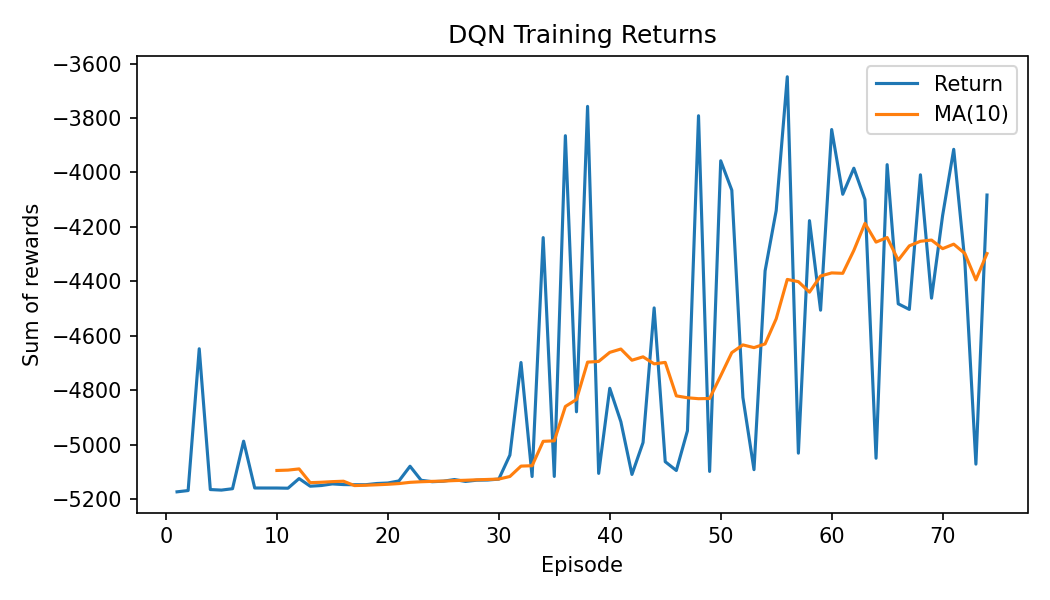

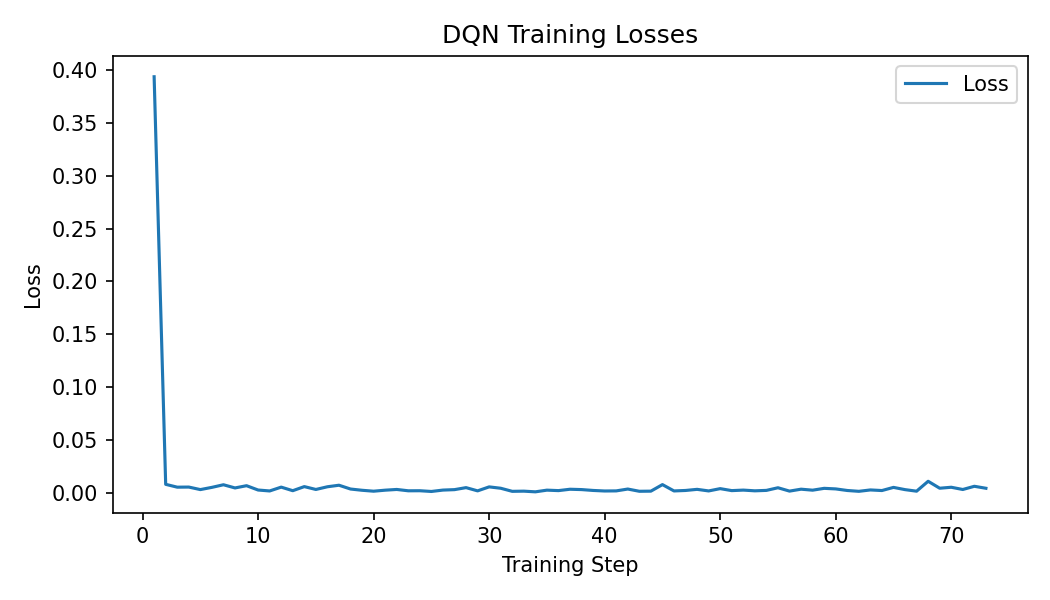

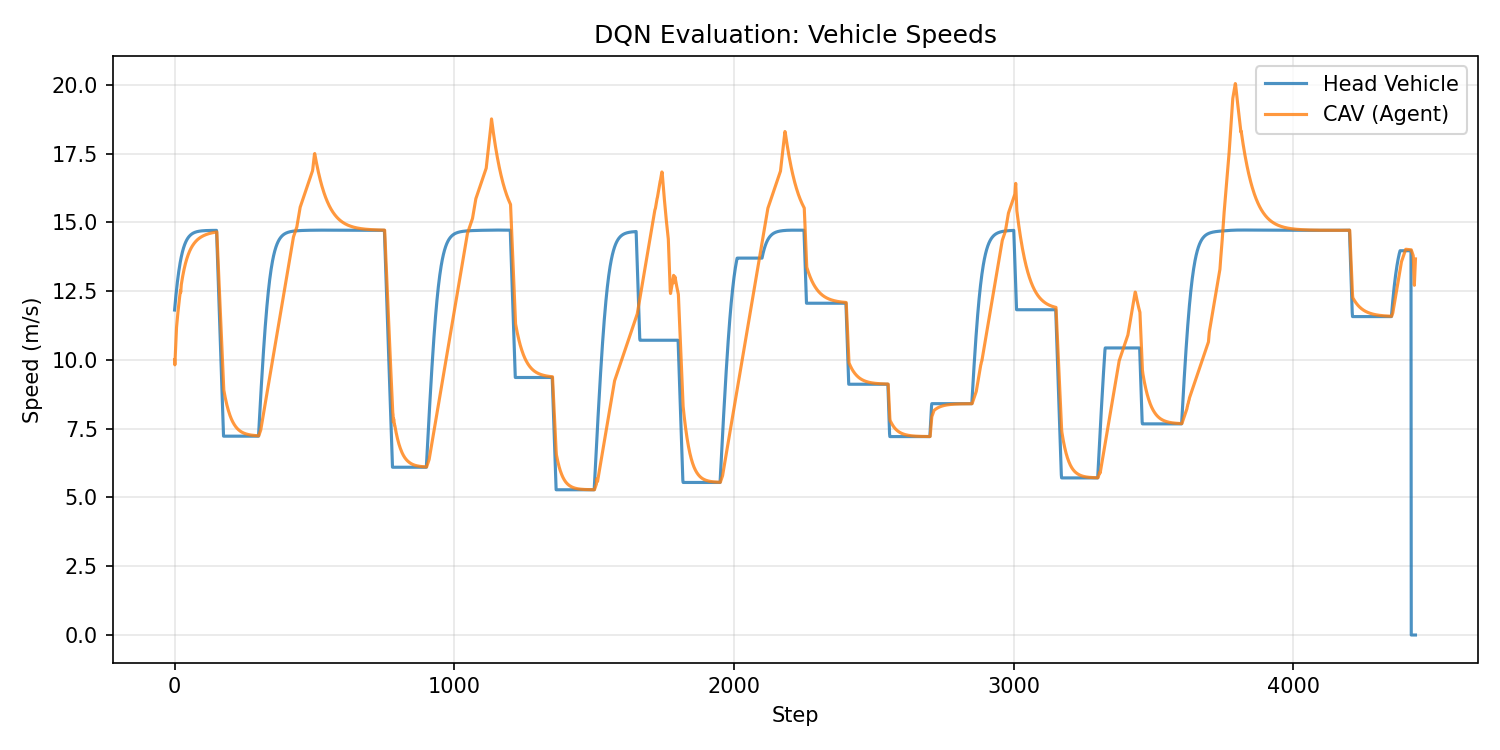

2.8 Results

2.9 Problems and Limitations

Still, the action space is discretized, which may limit the optimality of the learned policy. The agent cannot output fine-grained accelerations, which may be necessary for smooth control in a continuous environment. As shown in the DQN performance plot, the agent learns a reasonable policy but displays some spikes in the velocity to catch up the head vehicle, which may not be ideal for smooth traffic flow. Therefore, we concluded to use a policy-gradient method that can directly output continuous actions, such as Proximal Policy Optimization (PPO), which is more suitable for continuous control tasks and can learn more stable policies with fewer hyperparameters to tune.

3. Proximal Policy Optimization (PPO)

3.1 Overview

PPO is an on-policy, policy-gradient algorithm that directly optimizes a parameterized policy \(\pi_\theta(a \mid s)\) rather than learning action values. Unlike Q-learning and DQN, PPO naturally handles continuous action spaces — the policy outputs a Gaussian distribution over accelerations, eliminating the need for action discretization and enabling fine-grained, smooth control.

The implementation uses an Actor-Critic architecture with a clipped surrogate objective and Generalized Advantage Estimation (GAE) [2].

3.2 Network Architecture

The Actor-Critic network shares feature extraction layers between the policy (actor) and the value function (critic):

\[ \mathbf{s} \in \mathbb{R}^{2N} \xrightarrow{\text{Linear}(2N, 256)} \xrightarrow{\tanh} \xrightarrow{\text{Linear}(256, 256)} \xrightarrow{\tanh} \begin{cases} \xrightarrow{\text{Actor head}} \mu \in \mathbb{R}^{d_a} \\ \xrightarrow{\text{Critic head}} V \in \mathbb{R} \end{cases} \]

Layer	Input dim	Output dim	Activation	Init
shared1	\(2N\)	256	tanh	Orthogonal (std=\(\sqrt{2}\))
shared2	256	256	tanh	Orthogonal (std=\(\sqrt{2}\))
actor_mean	256	\(d_a\)	None	Orthogonal (std=0.01)
critic_head	256	1	None	Orthogonal (std=1.0)

Gaussian policy: The actor outputs a mean \(\mu_\theta(s)\) and uses a learnable, state-independent log standard deviation \(\log \sigma\) (clamped to \([-2.0, 0.5]\)). Actions are sampled from \(\mathcal{N}(\mu, \sigma^2)\) and squashed through \(\tanh\) to produce bounded outputs in \([-1, 1]\), which are then rescaled to the acceleration range \([-3, 3]\) m/s².

The log-probability is corrected for the tanh change of variables:

\[ \log \pi(a \mid s) = \log \mu(u \mid s) - \sum_i \log(1 - \tanh^2(u_i)) \]

where \(u\) is the pre-squashed sample.

3.3 Clipped Surrogate Objective

PPO constrains policy updates using a clipped probability ratio to prevent destructively large steps:

\[ L^{\text{CLIP}} = \mathbb{E}\Bigl[\min\bigl(r_t \hat{A}_t,\;\; \text{clip}(r_t, 1-\epsilon, 1+\epsilon)\,\hat{A}_t\bigr)\Bigr] \]

where:

• \(r_t = \frac{\pi_\theta(a_t \mid s_t)}{\pi_{\theta_\text{old}}(a_t \mid s_t)}\) is the probability ratio between new and old policies.
• \(\hat{A}_t\) is the estimated advantage (see Section 3.4).
• \(\epsilon = 0.2\) is the clipping threshold.

The \(\min\) ensures that when the advantage is positive, the ratio cannot exceed \(1 + \epsilon\), and when negative, it cannot fall below \(1 - \epsilon\). This creates a trust region that keeps the updated policy close to the data-collecting policy.

3.4 Generalized Advantage Estimation (GAE)

Advantages are computed using GAE, which provides a tunable bias-variance tradeoff via the \(\lambda\) parameter:

\[ \hat{A}_t = \sum_{l=0}^{T-t-1} (\gamma \lambda)^l \delta_{t+l} \]

where the TD residual is:

\[ \delta_t = r_t + \gamma\,(1 - d_t)\,V(s_{t+1}) - V(s_t) \]

• When \(\lambda = 0\): pure one-step TD (low variance, high bias).
• When \(\lambda = 1\): Monte Carlo return (high variance, low bias).
• Default \(\lambda = 0.95\) balances both.

Returns for the value function target are computed as \(R_t = \hat{A}_t + V(s_t)\).

3.5 Training Loop

PPO uses a rollout-based training loop that alternates between data collection and policy updates:

1. Collect rollout: Run the current policy for 2,048 steps, storing \((s, a, r, V(s), \log\pi(a|s), d)\) in the rollout buffer.
2. Compute advantages: Apply GAE over the collected rollout, bootstrapping from \(V(s_T)\) if the episode did not terminate.
3. Normalize advantages: Subtract mean and divide by standard deviation for training stability.
4. Minibatch updates: For \(K = 10\) epochs, shuffle the rollout data and iterate over minibatches of size 64:
5. Recompute \(\log\pi_\theta(a|s)\) and \(V_\theta(s)\) under the current parameters.
6. Compute the clipped policy loss, value loss (MSE), and entropy bonus.
7. Minimize the combined loss: \(L = L^{\text{CLIP}} + c_v L^{\text{value}} + c_e L^{\text{entropy}}\).
8. Clip gradients by global norm to 0.5.
9. Clear buffer and repeat from step 1.

3.6 Loss Function

The total loss combines three terms:

\[ L = L^{\text{CLIP}} + c_v \cdot \text{MSE}\bigl(V_\theta(s),\; R_t\bigr) - c_e \cdot H[\pi_\theta(\cdot \mid s)] \]

Term	Coefficient	Purpose
Policy loss	1.0	Maximize clipped advantage
Value loss	\(c_v = 0.5\)	Fit value function to returns
Entropy bonus	\(c_e = 0.01\)	Encourage exploration, prevent collapse

3.7 Hyperparameters

Parameter	Symbol	Default
Learning rate	\(\eta\)	\(3 \times 10^{-4}\)
Discount factor	\(\gamma\)	0.99
GAE lambda	\(\lambda\)	0.95
Clip epsilon	\(\epsilon\)	0.2
Epochs per update	\(K\)	10
Minibatch size	—	64
Value coefficient	\(c_v\)	0.5
Entropy coefficient	\(c_e\)	0.01
Max gradient norm	—	0.5
Rollout steps	—	2,048
Total training steps	—	600,000
Hidden dim	—	256

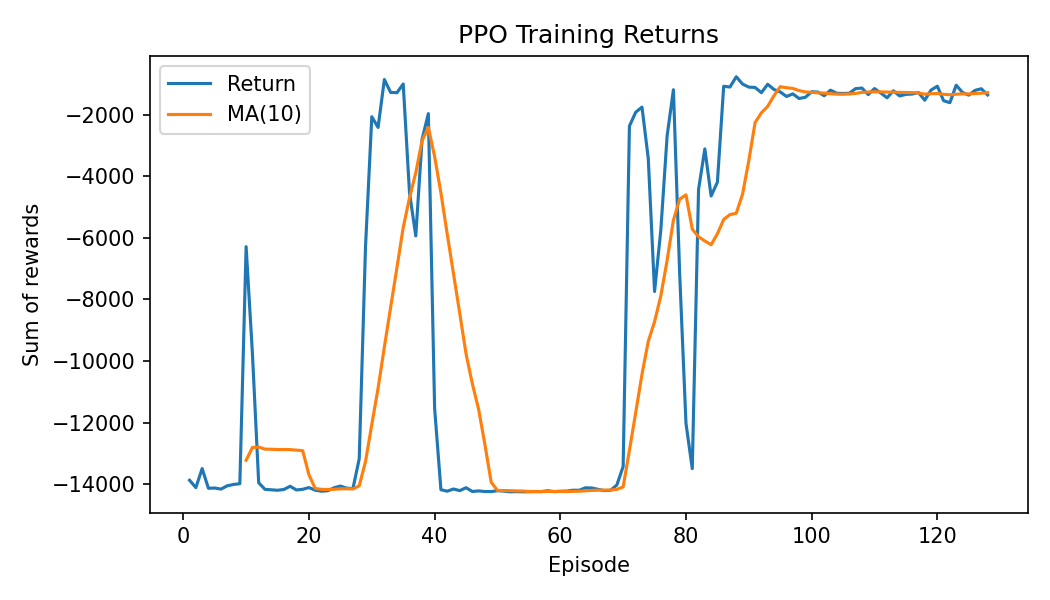

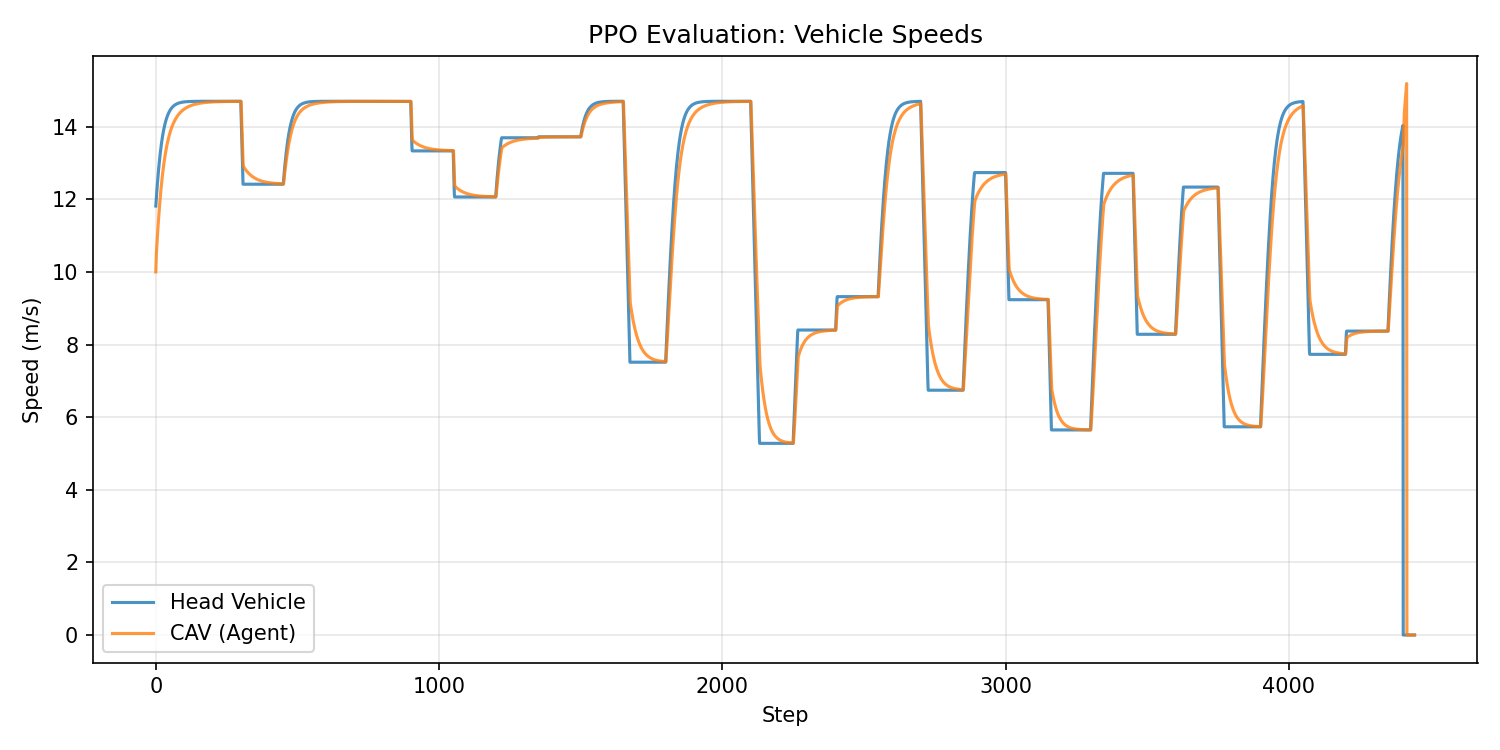

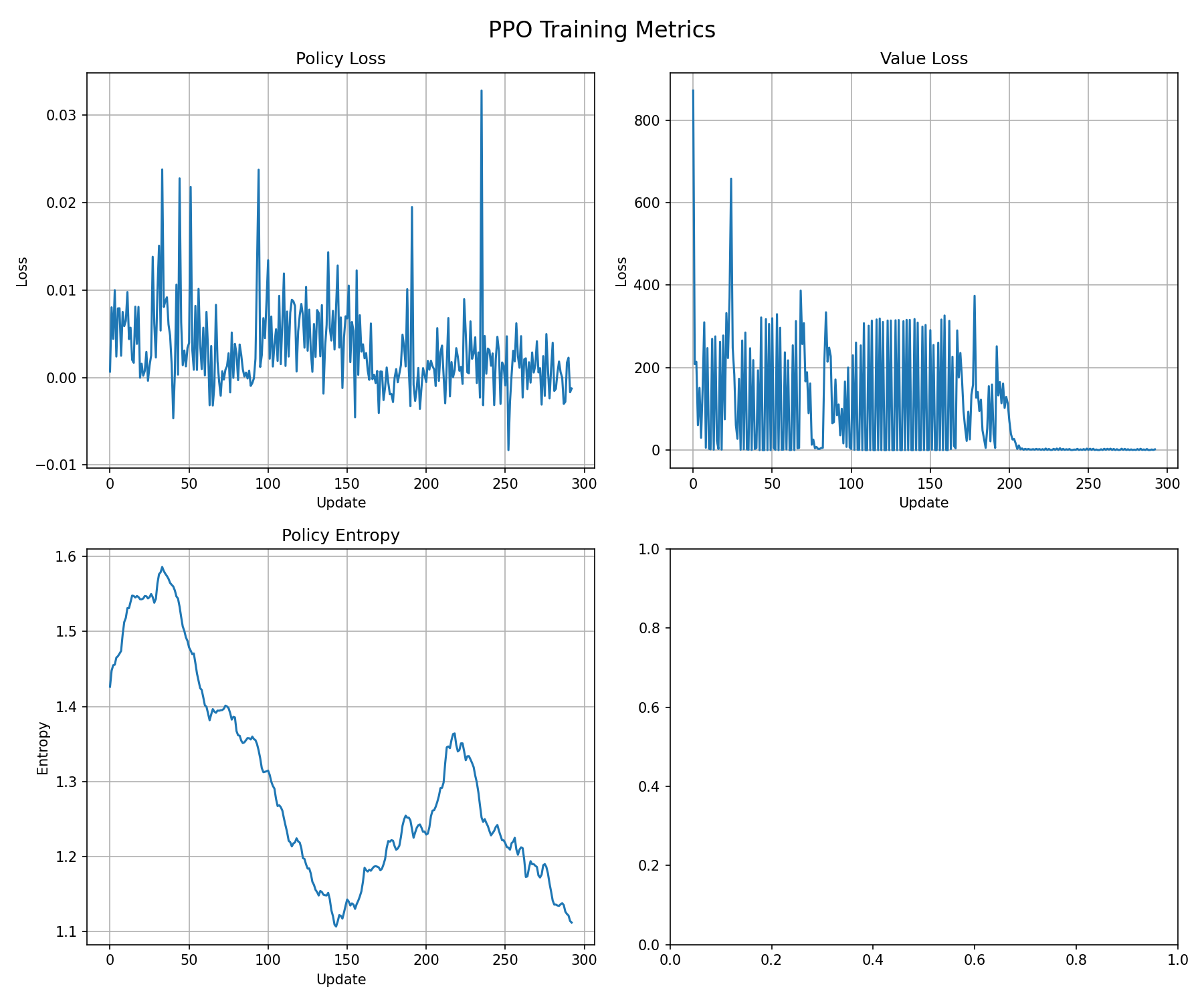

3.8 Results

References

[1] Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A., Antonoglou, I., Wierstra, D., & Riedmiller, M. (2013). Playing Atari with Deep Reinforcement Learning. arXiv [Cs.LG]. Retrieved from http://arxiv.org/abs/1312.5602

[2] Schulman, J., Wolski, F., Dhariwal, P., Radford, A., & Klimov, O. (2017). Proximal Policy Optimization Algorithms. arXiv [Cs.LG]. Retrieved from http://arxiv.org/abs/1707.06347
